Stainless Steel Reverse Osmosis Water Filter Treatment System 500 L/H

Name: Stainless Steel Reverse Osmosis Water Filter Treatment System 500 LH
Brand: Kaiyuan
Price: 1 USD

Wholesale Stainless Steel Reverse Osmosis Water Filter Treatment System 500 L/H from china suppliers

Brand Name : Kaiyuan

Model Number : KYRO-500LPH

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : >= 1sets

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >300sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

RO Membrane : USA DOW

Production Capacity : 500liters per hour

Recovery Rate : 50%-75%

Electrical Power : 220/380V 50/60Hz

Tank Material : FRP/ Stainless steel/ Carbon Steel

Control Valve : Automatic/ Manual

Pipe fitting : SUS304/ U-PVC

Warranty : 1 Year

Size : 1550*620*1670MM

Weight : 200KG

Feed Water TDS : <2000mg/L

Desalination Rate : >=97%

Contact Now

Stainless Steel Reverse Osmosis Water Filter Treatment System 500 L/H

1.Product Description

The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.

More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.

2.Product Details

kyro-500lph Stainless Steel two stage ultrapure water equipment

1. Capacity: 500L/H EDI

2. Rated power: 1.5KW/H

3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase

4. Desalting rate:>=97%

5. Water recovery rate: 50-75%

6. Conductivity of raw water: ≤400μs

7. Conductivity of EDI pure water: <=10μs

3. Features

◊ This system occupy little space, easy to operate, wide application field.

◊ High operation automation degree. It is unattended.

◊ Automatic flushing of reverse osmosis film by IC microcomputer controller. Online display of raw water

and pure water electric conductivity.

◊ Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.

◊ Finished water under good electric conductivity, one stage≤10μs/cm, two stage around 2-3μs/cm,

EDI ≤0.5μs/cm (base on raw water ≤300μs/cm).

◊ Imported parts account for over 90%.

4. Application

CBD Centra Businesse Buildings / High-grade Hotels / High-grade communities / schools / Food industries water consumption / purified water manufactories / Pharmaceuticals industry / Electric power plant etc.

5. Process

Single-stage water equipment:

Raw water → raw raw water booster tank → Multi-media filter (quartz sand filter) → carbon filter→water softener processor → precision filter → high-pressure pump → reverse osmosis (RO) system

Two-stage pure water equipment:

Raw water → raw water tank → raw water pump → multi-media filter (quartz sand filter) → carbon filter →water softener processor → precision filter → high-pressure pump → Single-stage reverse osmosis (RO) → pure water tank → high-pressure pump → two stage reverse osmosis

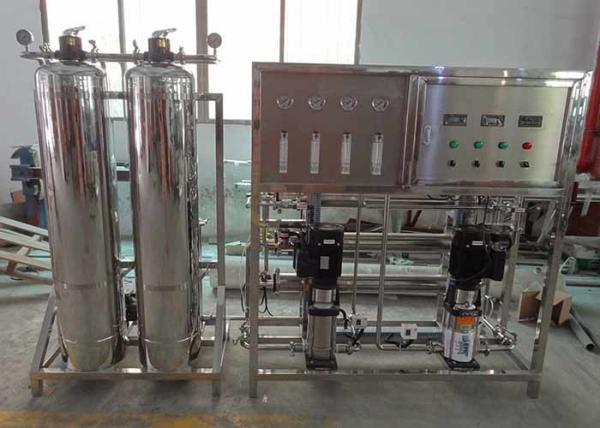

6. Photo Show

Stainless Steel Reverse Osmosis Water Filter Treatment System 500 L/H

Warmly Welcome to Visit Us^^
